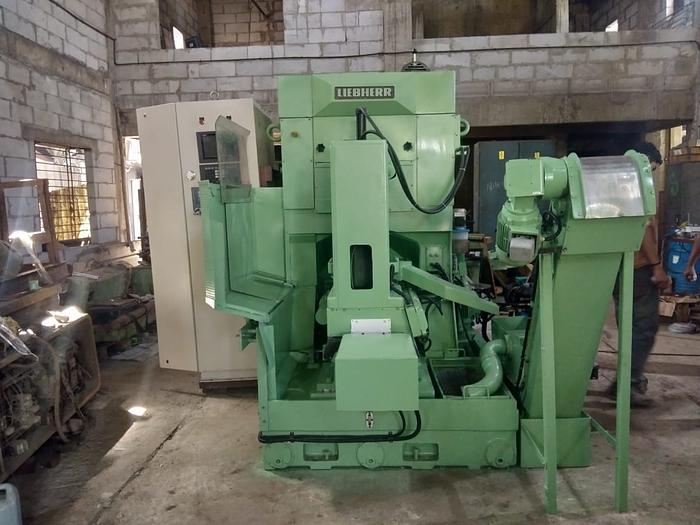

1980 Liebherr WSC 501

Technical Data WSC 501 table diameter 400 mm Max. Ø external teeth 500 mm Max. Ø root circle for internal teeth 500 mm Max. Width of gearing track toothing 120 mm Main applications and functions of the machine Max. table load 950 kg totally connected load 22 kVA Shaping head max. module 8 mm Max. slide stroke 130 mm number of strokes 28 ... 140 H / min Machine dimensions length / width / heigth 3m / 2,2m / 2,85 m Technical data WSC 501 Table diameter 400 mm Max. Ø 500 mm external toothing Max. Ø base circle for internal toothing 500 mm Max. Gear tooth width of 120 mm forehead Main applications and functions of the machine Max. Table load 950 kg Total power 22 kVA Shaping head max. Module 8 mm Max. Ram stroke 130 mm Number of strokes 28 ... 140 H / min machine dimensions Length / width / height 3 m / 2.2 m / 2.85 m
