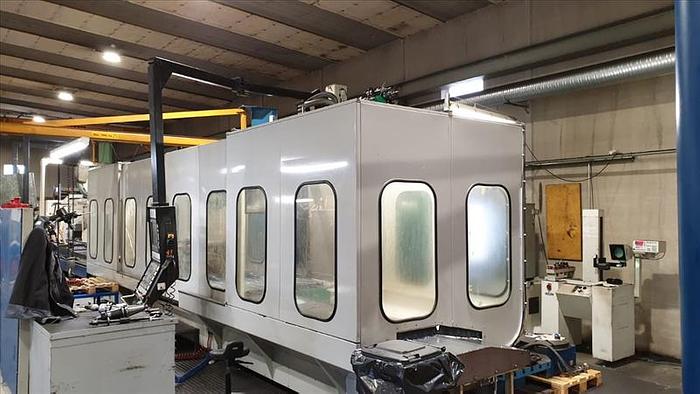

2003 Zayer 30KFU 4000 AR

ZAYER 30 KFU 4000 AR page1image23416768 Bedtype milling machine with autom swiveling milling head Installed in February 2003 Controller HEIDENHAIN iTNC 530 with handwheel HR 410 Travels = X = 3,700 mm Y = 1,250 mm Z = 1,500 mm Table surface enhanced = 4,000 mm x 1,300 mm Rapid feed all axes = 25,000 mm / min Covers around 3 sides Max. Table load = 10,000 kg Taper ISO 50 DIN 69871 AD Spindle power = 37 kW Automatic gear box - 2 ranges Automatic milling head - B + C Ax Each 0.001 ° by ax positioning - 360,000 positions every ax Spindle speed up to 6,000 rpm Inner coolant through spindle Tank with paper filter 1000 l capazity Automatic tool changer 40 tools ATC chain type Prepared for 4. Axes Chip conveyor Under power, video available
