1970 Bäctemans 3 roll plate bender

1970 Bäctemans 3 roll plate bender

Contact us for price

orCall +49(0)3031808701


Coming for sale


Bäctemans 3 Roll Plate Bender:


Working Specs.

Model hydraulic pyramid, gearbox rolling

Rolling length 3000mm, rolling capability 70mm / Prebending 50mm thickness for 46-58 kp/mm² materials

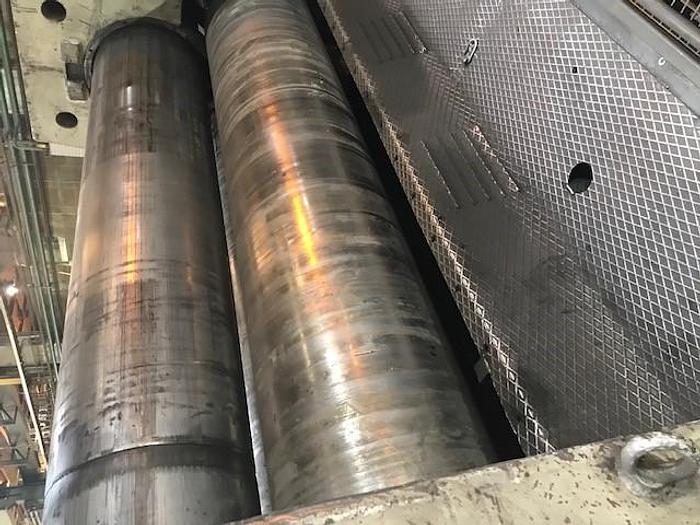

Changeable Upper rolls Dia 650mm and Dia 450mm +attachable cone piece

Side rolls Dia 650mm

Gap between upper and side rolls 200mm is the maximum plate thickness for rolling


Machine Specs.

Total machine weight with rolls and support frame about 155 + Tons

Main electrical motor 73,6Kw

User interface manual push buttons, digital side rolls height tracking

Pressing force 726,5 tons

Rolling force 1215 tons

Max Sylinder holding pressure 460 kp/cm² x4

Hydraulic reservoir 500 Liters

Gearshaft oil capacity 275 Liters

Machine frame outer dimensions: length approx. 10,5m, width 4m , height with support frame approx. 3m


The plate roller is in very good condition


Model3 roll plate bender
