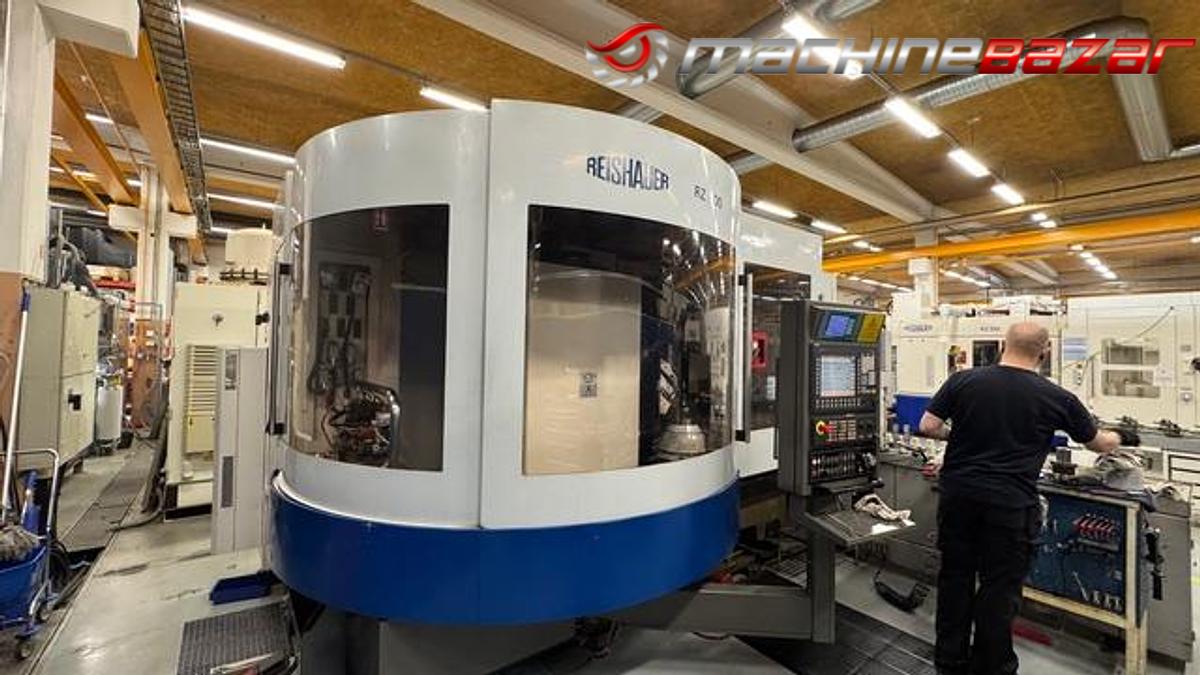

2002 Reishauer RZ 400

Reishauer RZ 400 , 2002

Max. wheel diameter : 400 mm

Gear width :      0 - 300 mm

Max. module :  8

Min. module :   0,3

Number of teeth :           5 - 999

Tooth width (Z1- grinding slide travel) :               0 - 300 mm

Centre distance :           60 - 700 mm

Max. helix angle :            +/- 45 °

Workpiece weight max :             300 kg

Tip circle diameter :     10 - 400 mm

Root circle diameter :  10 - 400 mm

Equipment/Accessories

CNC :   Siemens 840D

Pallet conveyor

Coolant/filter device Novotecnic

CNC dressing device REISHAUER

Under power , video available if interested please contact
